2.1 WD1ECS

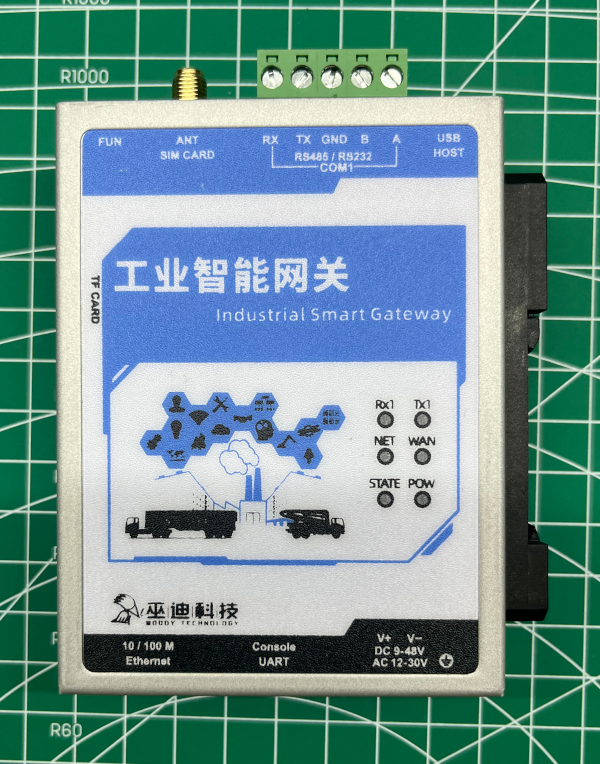

WD1ECS Provides one wired network port , supports 4G, also provides a 232/485 interface, power supply supports 9-48V DC input voltage/12-30V AC input voltage
2.1.1 Basic Parameters
| Name | Standard Parameters | Description | |
|---|---|---|---|
| Size | 98.50mm*74.00mm*27.00mm | Length*Width*Height | |
| CPU | Cortex-A7 , frequency 1GHz | ||
| Memory | 64MB DDR2 high-performance Memory | ||
| NandFlash | SLC Nand Flash onboard 128MByte SLC Flash | ||
| 4G Module | EC600K CAT1 |
2.1.2 Wired Network
WD1ECS has one network port, default address is
| Network Card | Address | Note | |
|---|---|---|---|
| Ethernet | 192.168.1.230/24 | ||
| LAN1 | 192.168.253.254/24 | Unmodifiable, permanently valid |
